MFZ603 Plywood Bander Edge Bending Machine For Edging Trimming

FOB Reference Price:Get Latest Price
$7,600.00 - $8,300.00 / Set | 1 Set/Sets (Min. Order)
Model Number:
MFZ603
Type:
Edge Banding Machine
Shipping:
Support Sea freight
Lead Time:
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 Negotiable
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Warranty:
12months, 12 months
Place of Origin:
Guangdong, China
Brand Name:
HOLYISO
Voltage:
380V or as your requested
Certification:
ISO9001/CE
Dimension(L*W*H):
4600*1100*1600mm
After-sales Service Provided:
Engineers available to service machinery overseas, Field maintenance and repair service
Model:
edge banding machine MFZ603
Edge thickness:
0.4-3mm
Panel thickness:
10-60mm
Panel length:
>=150mm
Panel width:
>=60mm
Working pressure:
0.6Mpa
Feed speed:
12-20m/min
Motor power:
10.48kw
Power(W):
10.48kw
Weight:
2300kg
Supply Ability
Supply Ability:
100 Set/Sets per Month Edge Banding Machine
Packaging & Delivery
Packaging Details
Stretch film with wooden case or as your request
Port
Qingdao Shanghai Guangzhou or as your request
Lead Time :
Quantity(Sets) 1 - 1 >1
Est. Time(days) 25 To be negotiated

MFZ603 Plywood Bander Edge Bending Machine  For Edging  Trimming



Product Description

Model

MFZ603

Motor power

10.48kw

Overall size

4600x1100x1600mm

Feed speed

12-20m/min

Panel thickness

10-60mm

Edge banding tape thickness

0.4-3mm

Panel width

>=80mm

Working air pressure

0.8mpa

weight

2300kg



Application:

The machine is suitable for such plates: MDF, block board, solid wood board, particleboard, polymer door plates, plywood etc, straight line edging and trimming. Function: pre-milling,gluing,edge cutting,end trimming, rough trimming, fine rimming, corner trimming, scraping, buffing, slotting and so on. Edging smoothly and edging line is straight. The machine is stable, reliable and durable, with favorable price. It is especially suitable for large and medium-sized furniture manufacturers.

Features:

1.This edge bander is ideal for building an automatic production line. Stability and controlled ability are the most important factors for an equipment to be part of production line.

2.Pre-milling equipment with double trim-blades works on the waved effect that is caused by precise saw.

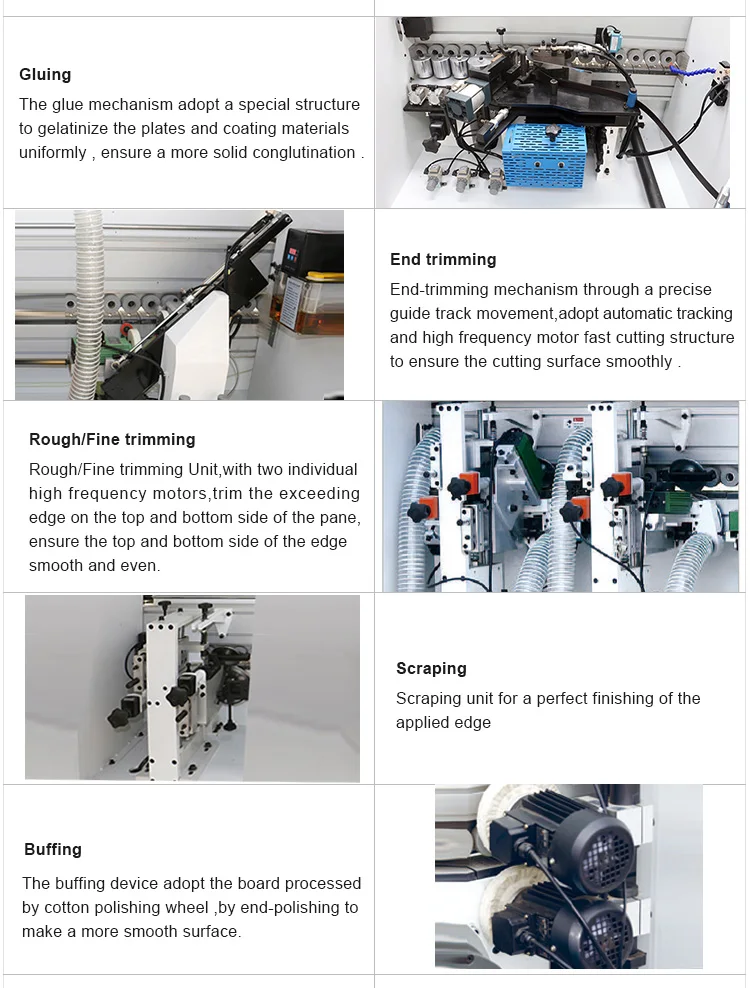

3.The glue mechanism adopts a special structure to gelatinize the plates and coating materials uniformly, ensure a more solid conglutination.

4.End-trimming mechanism through a precise guide track movement, adopt automatic tracking and high-frequency motor fast cutting structure to ensure the cutting surface smoothly.

5.Rough &Fine Trimming unit, with two individual high frequency motors, trim the exceeding edge on the top and bottom side of the panel, ensure the top and bottom side of the edge smooth and even.

6.Scraping unit for a perfect finishing of the applied edge.

7.The buffing device adopt the board processed by cotton polishing wheel, by end-polishing to make a more smooth surface.

8.Grooving is a optional function for edge banding machine. It's used to slot out one groove on panel to install glass, back panel etc.

Advantage:

1.Adopt domestic famous motor and high quality electrical components.

2.The fuselage is firm and steady,thus increasing the stability of the whole machine.

3.Aluminum alloy beam is a relatively advanced method, its precision and straightness are far superior to cast iron.

4.Auto cleaning, high precision, high efficiency.

5.The machine can be customized.

6.Automatic and precise gluing procedure as well integrated double finishing side within one workflow .The end cutting can be done at the rear side of the machine.

7.Multiple Air cylinder will assembled on the machine, mainly used for positioned location assured the panel materials processing accuracy in a very high level.

Packaging & Shipping

1.Delivery:
We can guarantee delivery on time.
We also can sign on-time delivery contracts. If we can’t deliver on time, we will give the product a corresponding discount.
2.Package:
We will take care of your machinery packages well like picture show.
Our workers will make sure your machine clean before package.
We will add stretchy film for the whole machine and spare parts for delicate protection.
We will make export standard strong Wooden box case package as your request.
3.Guarantee:
The machine is guaranteed for 12 months .Within 12 months under normal using and maintenance, if the machine has something problem ,you will get spare part for free . More than 12 months,you will get the cost price for accessories. You will also get technical support and service all the time.
4.Technical support:
Technical support by Phone, Email, Wechat, WhatsApp and Skype, 24 hours online.
We provide English version manual and Operational video.
Engineer available to service machinery overseas.
5.After sales services:
Our machine is installed and tested well before delivery. You can operate the machine immediately after receiving machine.
If you don't know how to use the machine, we will offer you free training until you can use machine freely. And If there is still have any question, please contact us by Email, Skype, Wechat, WhatsApp, Phone and Trade Manager online service at any time.
